Product parameter

	MC750		MC760		MC780
Technical Data
	Single mast	Twin mast	Single mast	Twin mast	Single mast	Twin mast
Max. platform length	16.9m	40.6m	16.9m	44.6m	16.9m	46.2m
Maximum platform length / loading capacity	4.1m / 2700kg	12.6m / 5000kg	4.1m / 3300kg	13.4m / 5600kg	4.1m / 4500kg	14.2m / 8000kg
	7.3m / 2300kg	20.6m / 4000kg	7.3m / 2900kg	23.8m / 4600kg	7.3m / 4100kg	23.8m / 7500kg
	10.5m / 1900kg	28.6m / 3000kg	10.5m / 2700kg	27m / 4100kg	10.5m / 3700kg	27.0m / 6500kg
	13.7m / 1500kg	35.0m / 2200kg	13.7m / 2100kg	36.6m / 2200kg	13.7m / 3250kg	36.6m / 4100kg
	16.9m / 1000kg	40.6m / 1500kg	16.9m / 1400kg	44.6m / 1200kg	16.9m / 2800kg	46.2m / 1000kg
Maximum freestanding height
• with extended outriggers on both sides	18~20m*	20m	12~19m*	12~18m*	9~18m*	9~18m*
• with extended outriggers on one side	13~18m*	13~20m*	9~15m*	9~15m*	9~15m*	9~15m*
Maximum height with top anchor	25m	25m	25m	25m	25m	25m
Maximum height with mast anchored	100m (higher mast by request)	100m (higher mast by request)	100m (higher mast by request)	100m (higher mast by request)	150m (higher mast by request)	150m (higher mast by request)
Distance between anchors	18m	18 m	18m	18m	18m	18m
Lifting speed	7 or 12m / min	7 or 12m / min	11.3m / min	11.3m / min	7.2m / min	7.2m / min

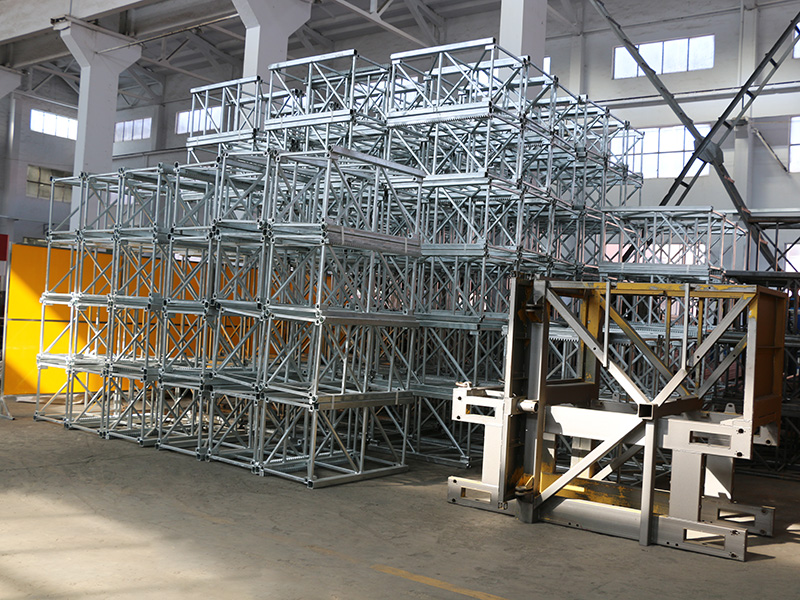

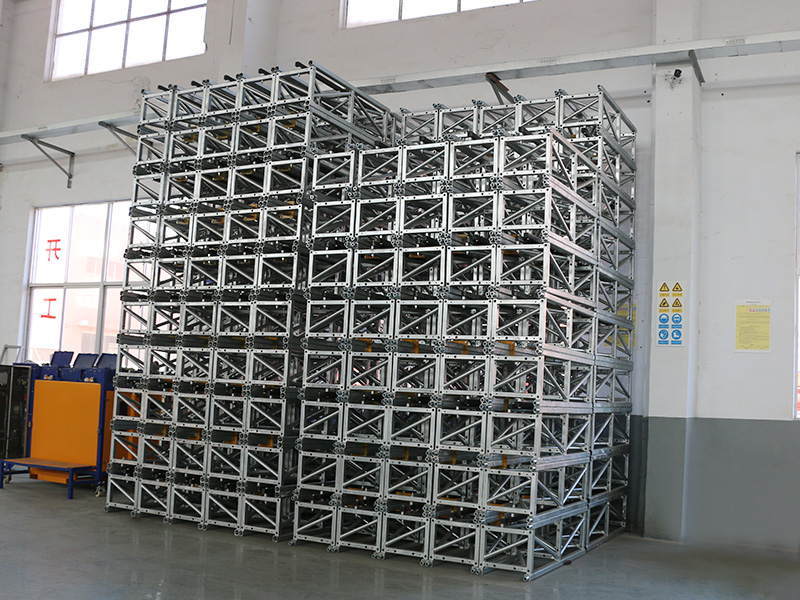

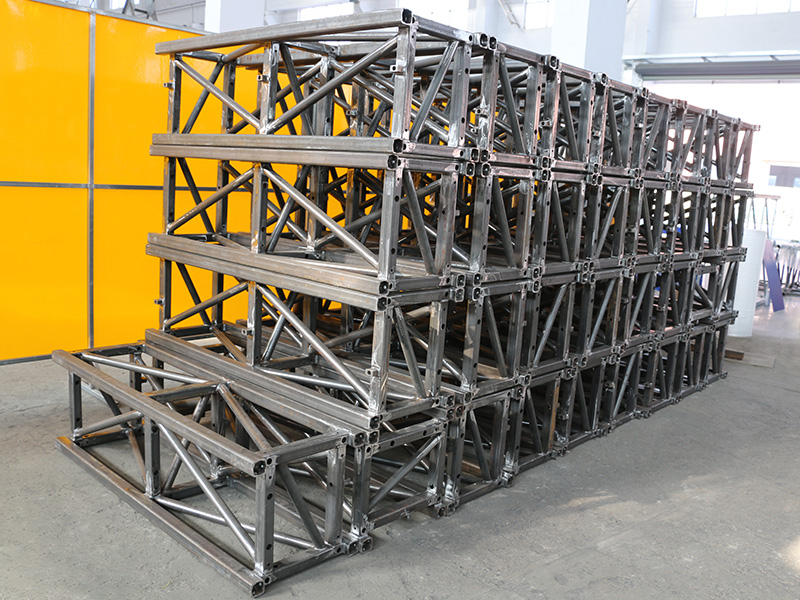

Mast section, hot-dip galvanised	1.25m / 82kg	1.25m / 82kg	1.25m / 82kg	1.25m / 82kg	1.25m / 82kg	1.25m / 82kg
Electric system - lifting motors	2×380V/50 Hz/ 3 or 5.5kW, 3phase/24 or 32A	2×2×380V/50 Hz/ 3 or 5.5 kW, 3 phase/24 or 32A	2×380V/50Hz/ 5.5 kW, 3 phase/32A	2×2×380V/50Hz/5.5 kW, 3 phase/32 A	2×380V/50Hz / 7.5kW, 3 phase/43A	2×2×380V/50Hz/ 7.5kW, 3 phase/43A
Safety devices
• Overspeed safety brake	◆	◆◆	◆	◆	◆	◆◆
• Emergency stop and limit switches	◆	◆◆	◆	◆	◆	◆◆
• Electromagnetic brake	◆	◆◆	◆	◆	◆	◆◆
• Phase sequency relay	◆	◆◆	◆	◆	◆	◆◆
• Residual current device	◆	◆◆	◆	◆	◆	◆◆
Item comparison
• Motors	2×ABB 3 or 5.5kW	2×2×ABB 3 or 5.5kW	2×ABB 5.5kW◆	2× 2×ABB 5.5kW◆	2×ABB 7.5kW◆	2×2×ABB 7.5kW◆
• Lifting speed	7 or 12m / min	7 or 12m / min◆	11.3m / min◆	11.3m / min◆	7.2m / min◆	7.2m / min◆
• Min/Max platform length	4.1m / 16.9m	12.6m / 40.6m	4.1m / 16.9m	13.4m / 44.6m◆	4.1m / 16.9m◆	14.2m / 46.2m
• Min/Max loading capacity	2700kg / 1000kg	5000kg / 1500kg	3300kg / 1400kg	5600kg / 1200kg	4500kg / 2800kg	8000kg / 1000kg
